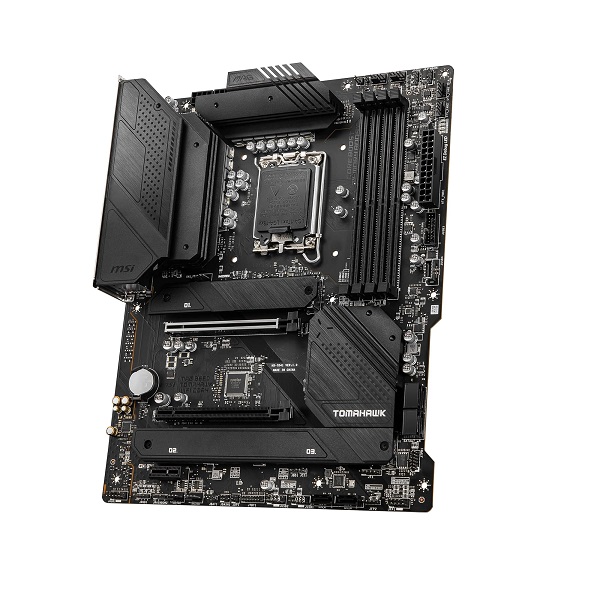

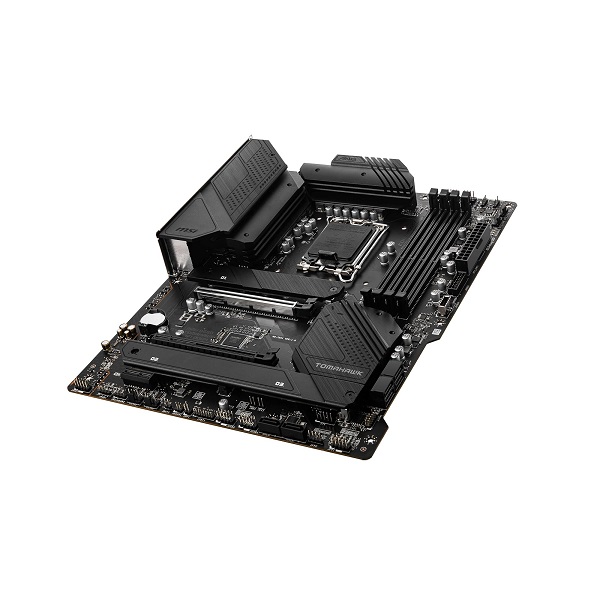

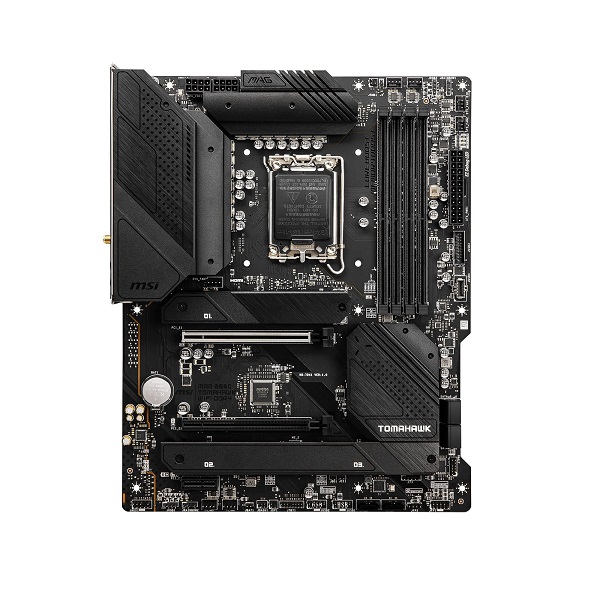

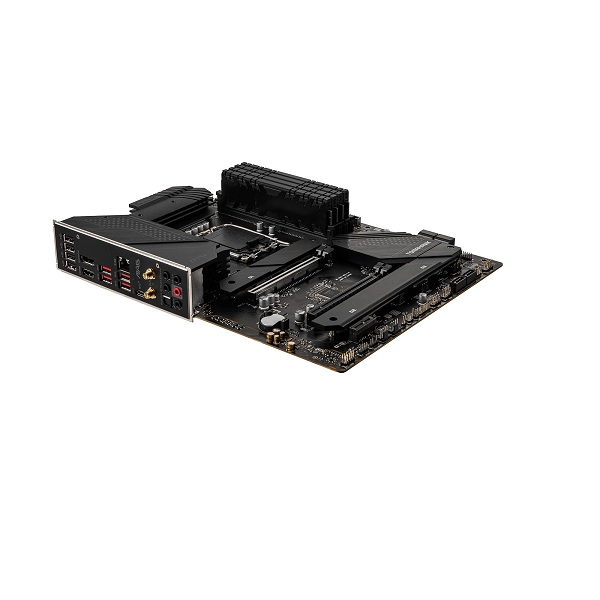

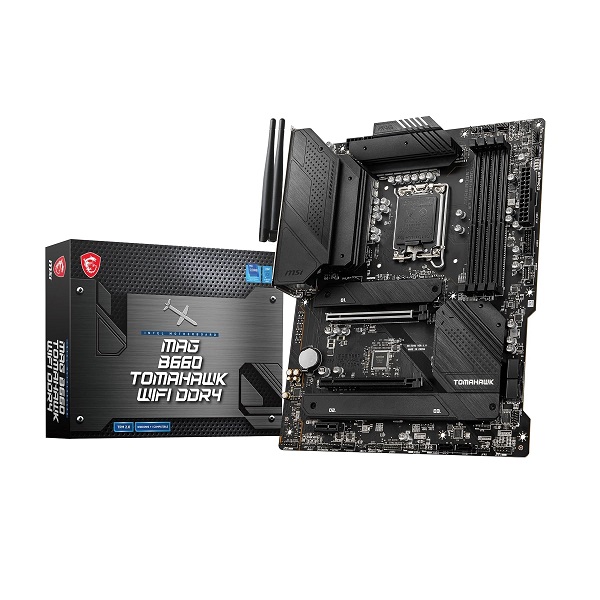

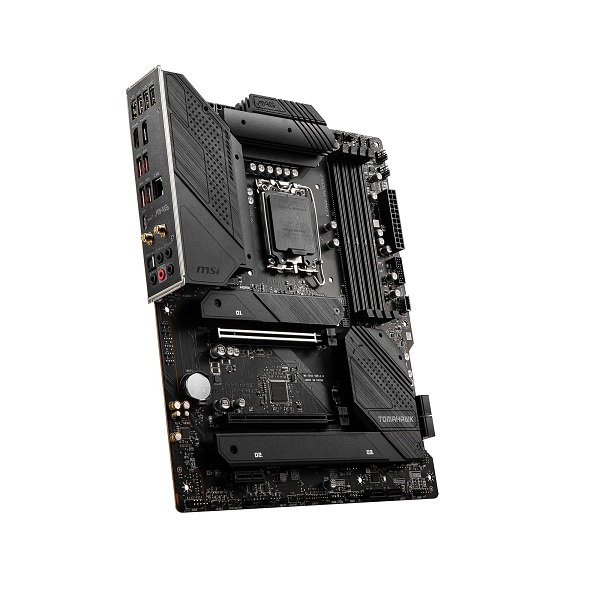

MSI MAG B660 Tomahawk WiFi DDR4 Intel Motherboard
Original price was: ₹33,450.₹20,475Current price is: ₹20,475.
Product Code: MAG-B660-TOMAHAWK-WIFI-DDR4
Out of stock
Description
Features:
Supports 12th Gen Intel? Core?, Pentium? Gold and Celeron? processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire?
Specifications:
Processor | Supports 12th Gen Intel? Core?, Pentium? Gold and Celeron?processors 1 Processor socket LGA 1700 |
Chipset | Intel? B660 Chipset |
Memory | 4x DDR4 memory slots, support up to 128GB 1Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 4800+ MHz1DPC 2R Max speed up to 4000+ MHz2DPC 1R Max speed up to 4000+ MHz2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel? Extreme Memory Profile (XMP) |
Expansion Slot | 2x PCIe x16 slotsPCI_E1 (From CPU)Support up to PCIe 4.0PCI_E2 (From B660 chipset)Support up to PCIe 3.0 x41x PCIe 3.0 x1 slot (From B660 chipset) |
Multi-GPU | Supports AMD? CrossFire? Technology |
Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 21x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 / 2 Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed. |
Storage | 6x SATA 6Gb/s ports SATA5~8 (From B660 chipset)SATA A~B (From ASM1061)3x M.2 slots (Key M)M2_1 slot (From CPU)Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 & M2_3 slots (From B660 chipset)M2_2 supports up to PCIe 4.0 x4M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel? Optane? Memory Supports Intel? Smart Response Technology for Intel Core? processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1SATAA & SATA B do not support RAID function. |
USB | Intel? B660 Chipset1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel)5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) |
Audio | Realtek? ALC1220P Codec7.1-Channel High Definition AudioSupports S/PDIF output |
LAN | 1x Realtek? RTL8125B-CG 2.5Gbps LAN controller |
Wireless LAN & Bluetooth? | Intel? Wi-Fi 6The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth? 5.2 |
Internal connectors | 1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors6x SATA 6Gb/s connectors3x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector5x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x TPM module connector1x TBT connector (supports RTD3)1x Tuning Controller connector |
LED Feature | 1x EZ LED Control switch2x 4-pin RGB LED connectors2x 3-pin RAINBOW LED connectors4x EZ Debug LED |

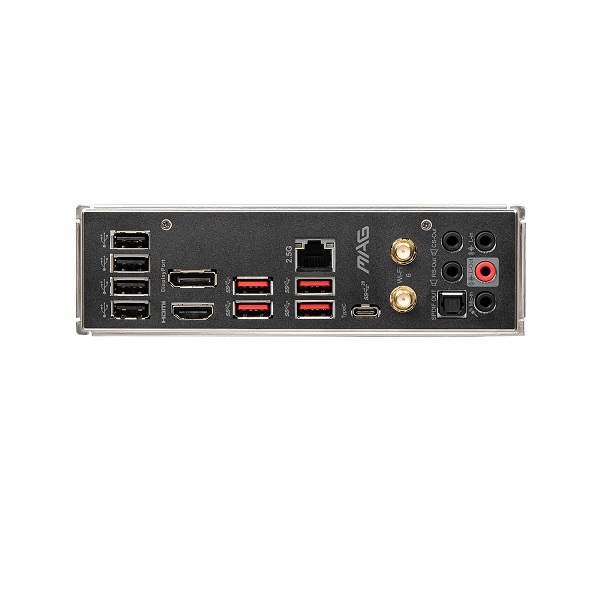

Back panel ports | USB 2.0 Port DisplayPort 1.42.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2 10Gbps Type-AUSB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
Dimensions | ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
